First steps

The following tutorial will guide you through your first steps with QuPath, and introduce you to the main features, buttons and concepts you need to get started. You will see how to:

  • QuPath Welcome window

  • Open a whole slide image

  • View image properties

  • Navigate around images

  • Manually annotate regions

  • Detect cells

  • View measurements

  • Export results

  • Save & reload your data

Starting out

Note

If you do not have a whole slide image handy, see here for examples.

Running QuPath

Running QuPath for the first time will present you with the welcome window. This contains useful links should you have an issue or want to learn more.

For those that like working on software in dark mode (or want to use their own creative themes) it’s possible to change that here. Additionally updates to QuPath or extensions can be checked for ensuring you have access to the latest features.

../../_images/steps_welcome.jpg

QuPath welcome window

Tip

Should you no longer want to see this pop-up, it can be de-selected at the lower right corner and will remain hidden until reactivated in settings under Edit ‣ Preferences ‣ general ‣ Show welcome message when QuPath starts.

Opening an image

You can open an image with File ‣ Open…, but that quickly becomes tiresome.

A better plan is to simply drag the file you want to open onto QuPath’s main window, and let QuPath do the rest. This works for most other file types that QuPath can handle - not only images.

../../_images/steps_image.jpg

A whole slide image (CMU-1.svs) opened within QuPath

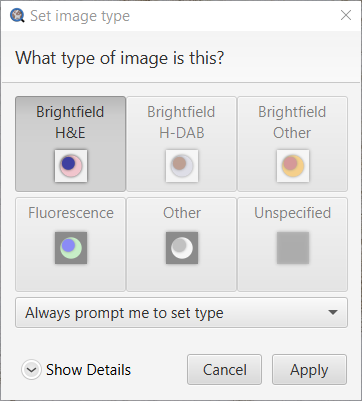

Setting the image type

One of the most important properties is the Image type, which can impact the behavior of some QuPath commands. When opening an image in QuPath you will be presented with a window allowing you to choose the image type. To find out more about what this means, check out the Show details section. You should choose the closest match for the image, e.g. Brightfield, Fluorescence.

../../_images/steps_image_type.jpg

Option window for setting the image type in QuPath

Important

QuPath can automatically estimate the image type for you, if you choose this option for Set image type under Edit ‣ Preferences… ../../_images/COG.png. However, sometimes the automatic estimate is wrong - so it’s important to be aware of this, and to know how you can fix the estimate if needed.

Tip

Should you need to change the image type later, it’s possible to do so in the Image tab within the Analysis panel mentioned below by double clicking on the image type that is currently set.

Seeing the image properties

Usually, there’s a panel on the left of the QuPath window: the Analysis panel. If not, click the Analysis panel button on the toolbar to open it ../../_images/MEASURE.png.

There are a few tabs here that you will meet later. For now, click the Image tab to get a table of properties related to your image.

../../_images/steps_image_tab.jpg

Image tab showing the image properties in QuPath

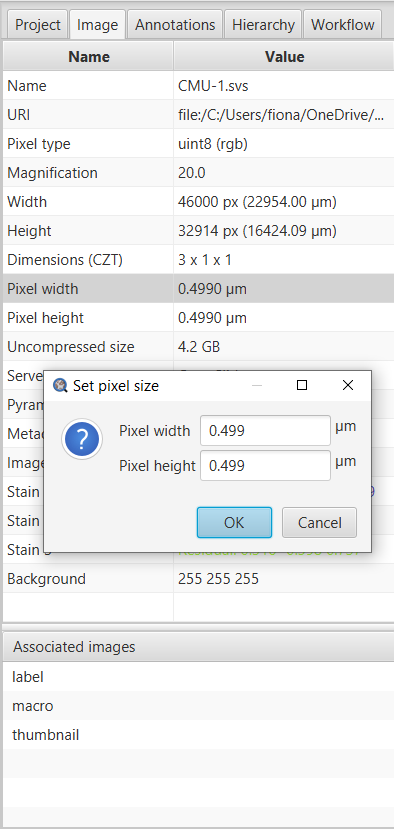

Setting the pixel size

The pixel size is used extensively by QuPath. This is why it is good practice to make sure it’s correct.

If stored in the image file, QuPath should automatically fetch the pixel size and display it under the Image tab (‘Pixel width’ & ‘Pixel height’). If not, you can set the pixel size manually by double-clicking on either row and type the correct values.

Tip

You can also set the pixel size based on a specific region of your image. To do so, create an annotation around the region then double-click on either ‘Pixel width’ or ‘Pixel height’ under the Image tab to type its size in micron squared.

You can also draw a line annotation (if you want to make it perfectly horizontal or vertical, hold down the Shift key) and do the same steps, typing the length in micron instead of the area.

Looking around

Zooming in & out

To zoom in and out of an image within QuPath, use the scroll wheel of your mouse (or equivalent scrolling motion on a trackpad).

You can also jump to a specific magnification if you:

  • Right-click on the image, and choose one of the zoom options e.g. Display ‣ 100%, or

  • Double-click on the little magnification value on the toolbar, and enter a value there.

../../_images/steps_mag.jpg

The Magnification box

Double-clicking on the magnification value in the toolbar (here, the bit that shows 10.0x) opens an input dialog to enter a specific magnification.

As you zoom in and out, the scalebar in the lower left cover will conveniently update so you always know your scale.

Tip

You can customize the scalebar thickness, font size and weight from preferences panel (Edit ‣ Preferences ‣ Viewer).

Panning

To pan around a large image within QuPath, first make sure that the Move tool ../../_images/MOVE_TOOL.png is selected in the toolbar. Then click anywhere on the image, and drag the mouse with the button held down to move.

Alternatively, you can click on the Overview image in the top right to automatically jump to a specific region.

../../_images/steps_overview.jpg

The Image overview (top right) can be used for navigation

Note

For other methods to navigate large images - including multitouch support for touchpads, touch-sensitive screens and 3D mice - see Viewing images.

Introducing objects

Understanding objects is key to making sense of QuPath’s features.

You can think of an object informally as something in an image that QuPath can identify, classify and measure.

For now, we only care about two kinds of objects:

  • Annotations: Objects that you usually create yourself, by drawing on the image

  • Detections: Objects that QuPath usually creates for you, e.g. by detecting cells (where each cell is an object)

Usually, you end up with a small number of annotations relating to larger regions (e.g. entire areas of tissue). But you can have potentially millions of detections. So for this reason QuPath handles and displays them a bit differently - but they also share a lot of similarities, in that you can see them both drawn on top of images and measure.

Note

For a purely manual analysis - drawing regions on an image and measuring them - you may find that you don’t need detections at all… annotations are enough.

For a deeper discussion of objects and why they matter so much, see Concepts.

Drawing annotations

Create your first annotation object by drawing a rectangle on top of the image. Do this by clicking on the Rectangle tool ../../_images/RECTANGLE_TOOL.png to select it, then click and drag over a region in the image. When releasing the mouse button, the rectangle should remain drawn on top of the image.

Now try drawing several more annotations of different shapes around different areas in the image using the Ellipse ../../_images/ELLIPSE_TOOL.png, Polygon ../../_images/POLYGON_TOOL.png and Brush tools ../../_images/BRUSH_TOOL.png.

Most of QuPath’s drawing tools work similarly (i.e. select the tool, click on the image, drag the mouse), but note that the polygon tool also allows you to eschew dragging and instead click each point where you want a vertex on the polygon. Double-click to set the final point.

Note

By default, QuPath will switch back to the Move tool ../../_images/MOVE_TOOL.png after you’ve drawn an annotation with any tool except the Brush.
This is to avoid accidentally drawing new annotations when you really just wanted to move around in the image or do something with an existing annotation. The Brush is different, because it’s commonly used to paint or edit multiple regions at a time, and it can be annoying to have to switch it back on regularly.

If you don’t like the default behavior, it can be changed with the Return to Move Tool automatically option in the Preferences ../../_images/COG.png.

Either way, you can quickly activate the tool you want using a shortcut key, e.g. just type M for Move, B for Brush, P for Polygon etc. You can see all the shortcut keys for drawing tools under the Tools menu.

Since QuPath version 0.4, you can also click the middle button (or scroll wheel) on your mouse to quickly toggle between Move and the last drawing tool you were using.

../../_images/steps_annotations.jpg

Rectangle, ellipse and polygon annotation objects drawn on an image

Identifying selections

You should find that when you draw an annotation object, it is initially selected. In the screenshot above, the selected (polygon) annotation is shown in yellow - with little square handles indicating vertices that could be adjusted if necessary.

Usually, you want to make sure an object is selected before you can do something with it. If the object you want isn’t selected already, return to the Move tool ../../_images/MOVE_TOOL.png, either by clicking on the tool button or pressing M, and then double-clicking on it to select it.

Tip

By default, selections are shown in yellow. You can change this color under Edit ‣ Preferences… ../../_images/COG.png. You can also turn off using a selected color, in which case QuPath will look for another way to show you whether an object is selected, e.g. with thicker outlines or drawing a box around it.

Tip

You can select multiple annotations by clicking on them while holding down the Alt key.

Changing colors & properties

Return now to the Analysis panel (left of the screen, ../../_images/MEASURE.png and click on the Annotations tab.

You should see a list of your annotations here. Clicking on this list gives another way to select an object. But you can also set the properties of your annotations here if you like. One way is to select from a predefined list of classifications on the right, and choose Set class. Alternatively, right-click on any listed annotation and choose Set properties to choose any arbitrary name or color. You can toggle on and off the visibility of annotation names with N.

Tip

You can also set an annotation’s properties by selecting it and hitting Enter.

../../_images/steps_annotation_panel.jpg

The Annotations tab

Viewing measurements

Still in the Analysis panel, below the annotation list you should see a table showing measurements for the currently selected object. This should update automatically if you click on another annotation.

Removing annotations

If you draw an annotation you don’t like, you can delete it from the annotation list. Alternatively, if you’re currently working inside the viewer (moving around, drawing annotations) you can simply press the Backspace or Delete key to remove the currently selected objects.

Note

Mostly, this should ‘just work’. But if you are deleting an object that contains other objects inside it, then QuPath will ask you if you want to ‘Keep the descendant object(s)’.

  • If you click Yes (or press Enter), only the selected object will be removed.

  • If you click No, then both the selected annotation and all the objects inside it will be removed.

  • If you click Cancel, nothing will be removed.

For more information on the strange use of the word descendant, see Object hierarchy.

Detecting cells

Next, try creating detection objects inside an annotation. First, draw an annotation in an area of the image containing cells - ideally quite small, to contain perhaps 100 cells.

Run the Analyze ‣ Cell detection ‣ Cell detection command. This should bring up an intimidating list of parameters to adapt the detection to different images. If you like you can explore these, and hover the mouse over each parameter for a description - but for now, you can also just ignore them and use the defaults (which tend to behave sensibly across a range of images).

../../_images/steps_cell_detection.jpg

Adjustable parameters for cell detection

Press the Run button at the bottom of the dialog. After a few seconds, cells should appear in the area you have selected.

These cells are your first detection objects.

../../_images/steps_cells_detected.jpg

First detected cells, using default detection parameters

Note

Detection objects also have measurements, like annotation objects.

You can select them, and their measurements show up in the same table in the Analysis panel. But you should see that detection objects look a bit different on screen. For example, if you zoom out to a low magnification, you should see annotations are still clearly visible, drawn with thick lines. However detections get smaller, their outlines get thinner, and they start to merge into one another.

This is because annotations and detections serve different purposes. Detections relate to small structures, such as cells or nuclei, of which you can easily end up with hundreds of thousands - or even millions - within a single image. You need to zoom in to see them. However you will generally have a much smaller number of annotations - each related to quite a large area - and you need to be able to see them when zoomed out.

The pattern we applied here here is common in QuPath:

  • Create an annotation (usually by drawing it)

  • Run a command to get QuPath to detect objects inside the annotation

In case this seems horribly manual, be assured that it’s possible to get QuPath to detect across many annotations simultaneously - and even to create annotations automatically. Just not in Lesson #1.

Showing & hiding

As your collections of objects grow on the image, it may start to become cluttered or confusing. There are four useful toolbar buttons that can help customize how the objects are displayed. These are:

  • ../../_images/ANNOTATIONS.png Show and hide annotations - shortcut A

  • ../../_images/TMA_GRID.png Show and hide a TMA grid (only relevant for tissue microarrays) - shortcut G

  • ../../_images/DETECTIONS.png Show and hide detections - shortcut D

  • ../../_images/DETECTIONS_FILL.png Fill and unfill detections - shortcut F

These allow you to quickly toggle on and off your markup to switch between looking at analysis data and the underlying image.

You can also right-click on the image, and further modify how cells are displayed, i.e. with/without nuclei or boundaries shown.

../../_images/steps_cells_display.jpg

Right-click on the image to change how cells are displayed

Creating measurement tables

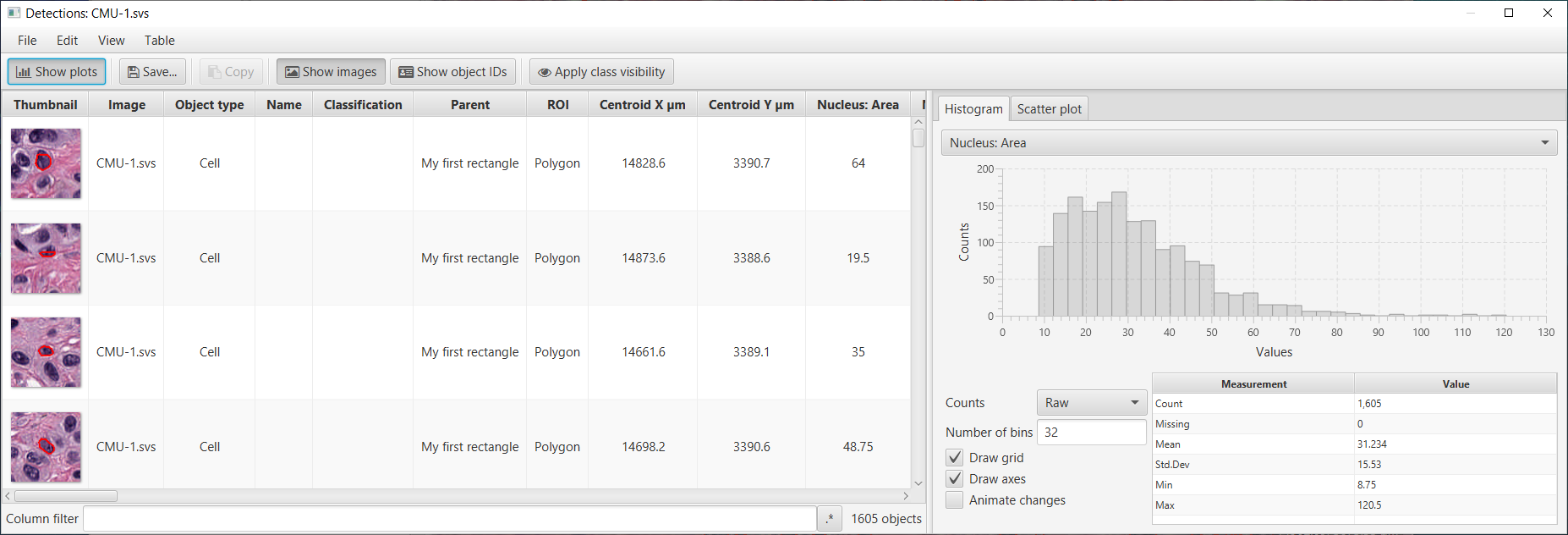

You can generate a results table containing measurements for your objects by selecting the Table button in the toolbar ../../_images/TABLE.png. You can then choose whether you want your table to contain annotations or detections.

Note that this table remains connected to the image, and allows you to select individual objects, or sort by columns. You can also generate histograms for any measurements, and save the table to a CSV file or copy its contents for pasting into another application, e.g. Excel.

../../_images/steps_table.jpg

A ‘detection’ measurement table containing details of all the detected cells

Finishing up

Saving data

When you’re done, you can save your analysis with File ‣ Save As…, or by responding positively to any saving prompts whenever you try to open another image or to quit.

This will save a .qpdata file, which is QuPath’s primary file format for storing objects and other image-related data. Note that this does not actually store the image itself (which may be huge), but rather only a link to it.

Tip

It is strongly recommended to use Projects rather than saving .qpdata files individually.

Reopening data

In most cases, you can reopen .qpdata files in the same way as you could open any image - by dragging it onto the QuPath viewer, or by choosing File ‣ Open.

It’s not necessary to open your image again first. If your original image remains where it was, the link within the .qpdata file will be used to open it automatically. However if the image has been moved, QuPath will show a dialog prompting you to select the new image location.

Warning

I say ‘in most cases’, because some images you can work with in QuPath are more complicated than the contents of a single file. In such cases, the .qpdata file alone doesn’t contain enough information - that’s why you should really embrace Projects soon.

Recap & outlook

If you got this far, great! You’ve seen many of the main features of QuPath, and had your first encounter with the fundamental idea of working with objects.

Even if not everything is clear yet, hopefully it gives enough motivation to read on through the documentation and see how powerful these ideas can become when put together.
